Description

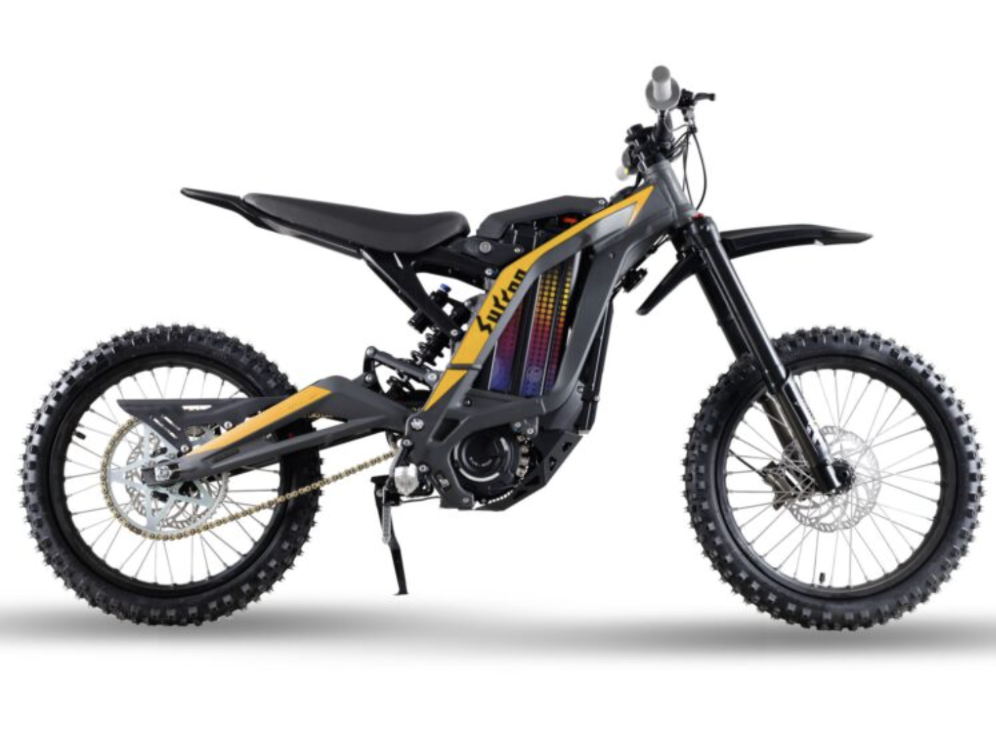

Introducing the Light Bee S, the epitome of advanced electric biking. Designed for both urban and off-road adventures, this bike delivers unmatched performance and versatility.
- High-Torque Electric Motor: Experience rapid acceleration and smooth power delivery.
- Long-Lasting Lithium-Ion Battery: Enjoy extended rides with a quick-charging, high-capacity battery.
- Lightweight Frame: Crafted from durable materials for agility and control.
- Advanced Suspension: Tackle any terrain with high-performance suspension.
- Regenerative Braking: Enhance safety and extend battery life.
- Digital Display: Monitor speed, battery, and performance in real-time.
- Eco-Friendly: Zero emissions and low maintenance for a sustainable ride.
- All-Terrain Tires: Designed for optimal grip and stability.
- High Torque Output: Conquer steep inclines and rugged trails with ease.
- Customizable Ride Modes: Adjust settings for different terrains.
| Motor Type | Air cooled permanent magnet synchronous motor |
| Mounting position | Middle of frame |
| Weight / Motor external dimensions | 7.0kg / 180mm |
| Motor axle length | 130mm |
| Peak Efficiency | 95.60% |
| Cooling method | Air Cooled |
| CONTROLLER SPECS | |
| Controller type | Sinewave controller |
| Dimensions | 240mm x 110mm x 50mm |
| Travelling wave current / highest working temp. | 70A / 110°C |
| MOTOR POWER SYSTEM SPECS | |
| Rated voltage | 48v (DC) |
| Rated power / peak power | 2kw / 2.9kw |
| Rotation Speed | 5000rpm |
| Road legal | No |
| TRANSMISSION SPECS | |
| Gear Ratio | 1:9.18 |
| Transmission | Belt and Chain |
| Belt brand & model | German Continental Brand, 8M CXA |
| BATTERY SPECS | |
| Battery | 48v 20 amp Lithium 12 cell battery |
| VEHICLE SPECS | |
| Chassis material | No.6061 T4 & T6 aluminium alloy |
| Chassis process method | Forged by 6000 tons of pressure |
| Chassis weight | 7.8kg |
| Chassis surface & colour processing | Painted |
| LED headlight | No |
| Wheel type & size | Aluminium alloy spoke wheels, Front/Rear 17 x 1.4 |
| Tyre size | Front/Rear 70/100-17 |
| Tyre brand | CST brand tyre |
| Top speed | 30mph |
| Max range | 40 miles @ 15mph |
| Net weight | 48kg |
| Vehicle dimension | 1820mm x 730mm x1020mm |
| Seat height | 760mm – Age 10 to 16 |
| Wheel base | 1250mm |
| Handlebar width | 720mm |
| Available colours | Black, Blue, Red |
| Charger | 5Ah |
| Charging time | 4-4.5 hours |
| Front absorber | KKE up-side-down hydraulic absorber |
| Rear absorber | KKE absorber with intersect TR suspension system |
| Front & Rear brake | Bilateral FOUR piston caliper hydraulic disc brake |
| Maximum load | 75kg |
